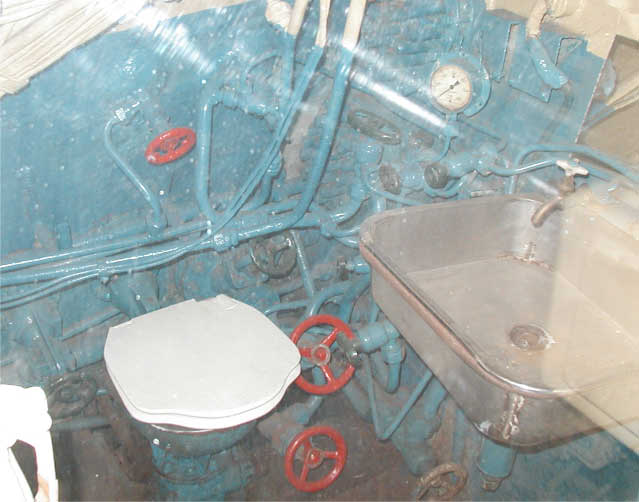

Here is one of the submarines 3 luxurious toilet facilities. Did I mention 78 men lived on this thing?

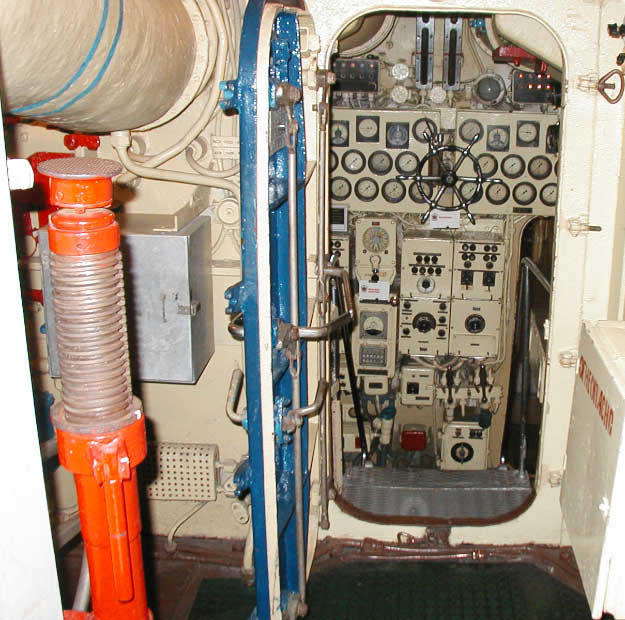

After the petty officers bunks and radio room there is this door. Wow.

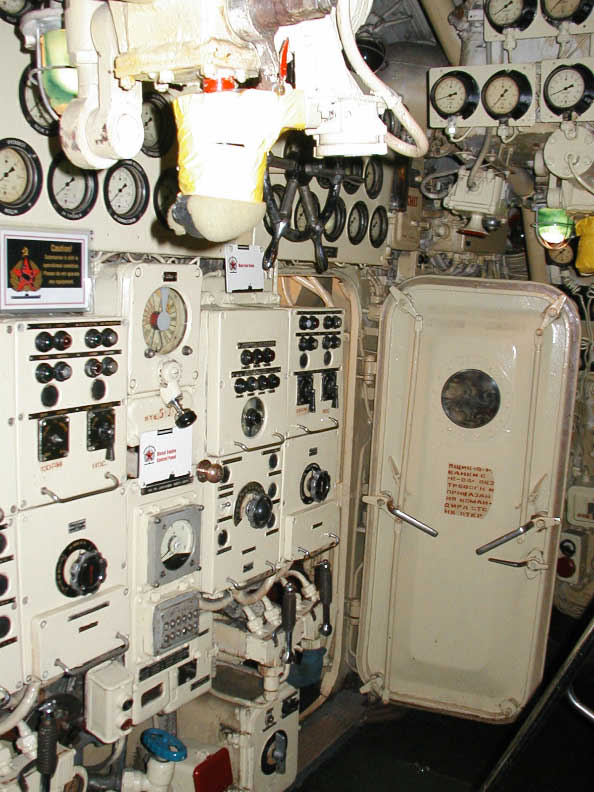

Anyway, that door leads into this room, machinery control. It's pretty small, I hit my head on that padded thing.

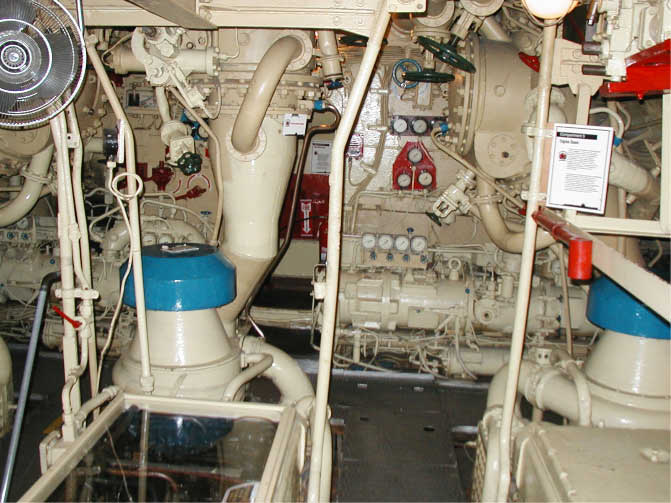

That last room leads onto the most spacious compartment in the sub, the deisel engine room. The sub is powered by 3 2,000 horsepower deisel engines, one for each of the 6-bladed propellers. On the surface these engines give the sub a 20,000 mile range, or 36,000 kilometers. The Foxtrot class submarines were also equipped with a snorkel, to allow the deisel engine to breath (and thus run) while submerged. I do not believe the fan in the upper left corner of the picture was standard equipment.
